04-370
Diagnosis-Power Windows

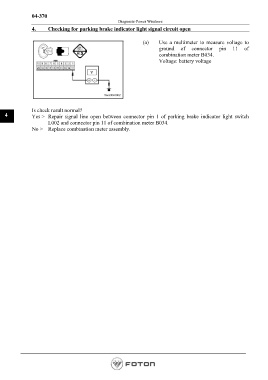

4. Checking for parking brake indicator light signal circuit open
(a) Use a multimeter to measure voltage to
ground of connector pin 11 of
combination meter B034.
Voltage: battery voltage
Is check result normal?
4 Yes > Repair signal line open between connector pin 1 of parking brake indicator light switch
L002 and connector pin 11 of combination meter B034.
No > Replace combination meter assembly.
