P. 515

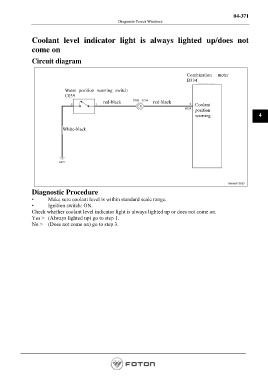

04-371
Diagnosis-Power Windows
Coolant level indicator light is always lighted up/does not
come on
Circuit diagram
Combination meter
B334
Water position warning switch
C039
red-black red-black
Coolant
position
warning 4
White-black
Diagnostic Procedure
• Make sure coolant level is within standard scale range.
• Ignition switch: ON.
Check whether coolant level indicator light is always lighted up or does not come on.
Yes > (Always lighted up) go to step 1.
No > (Does not come on) go to step 3.
