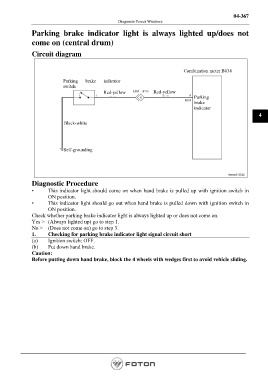

04-367
Diagnosis-Power Windows

Parking brake indicator light is always lighted up/does not

come on (central drum)

Circuit diagram

Combination meter B034

Parking brake indicator
switch
Red-yellow Red-yellow
Parking
brake
indicator
4
Black-white

Self-grounding

Diagnostic Procedure
• This indicator light should come on when hand brake is pulled up with ignition switch in
ON position.
• This indicator light should go out when hand brake is pulled down with ignition switch in
ON position.
Check whether parking brake indicator light is always lighted up or does not come on.
Yes > (Always lighted up) go to step 1.
No > (Does not come on) go to step 3.
1. Checking for parking brake indicator light signal circuit short
(a) Ignition switch: OFF.
(b) Put down hand brake.
Caution:
Before putting down hand brake, block the 4 wheels with wedges first to avoid vehicle sliding.
