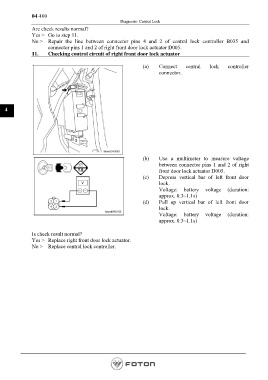

Page 544 - Workshop Manual - Aumark (BJ1051)

04-400
Diagnosis- Central Lock
Are check results normal?
Yes > Go to step 11.
No > Repair the line between connector pins 4 and 2 of central lock controller B035 and
connector pins 1 and 2 of right front door lock actuator D005.
11. Checking control circuit of right front door lock actuator

(a) Connect central lock controller
connector.

4

(b) Use a multimeter to measure voltage
between connector pins 1 and 2 of right
front door lock actuator D005.
(c) Depress vertical bar of left front door
lock.
Voltage: battery voltage (duration:
approx. 0.3~1.1s)
(d) Pull up vertical bar of left front door
lock.
Voltage: battery voltage (duration:
approx. 0.3~1.1s)

Is check result normal?
Yes > Replace right front door lock actuator.
No > Replace central lock controller.
