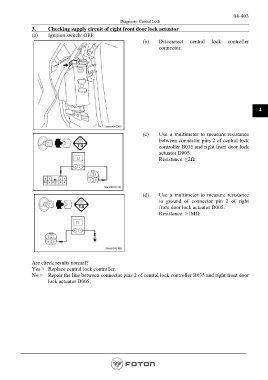

P. 547

04-403
                                                       Diagnosis- Central Lock
               3.     Checking supply circuit of right front door lock actuator
               (a)    Ignition switch: OFF.
                                                                (b)     Disconnect   central   lock   controller
                                                                        connector.















                                                                                                                    4




                                                                (c)     Use a multimeter to measure resistance
                                                                        between connector pins 2 of central lock
                                                                        controller B035 and right front door lock
                                                                        actuator D005.
                                                                        Resistance: ≤2Ω







                                                                (d)     Use a multimeter to measure resistance
                                                                        to ground of connector pin 2 of right
                                                                        front door lock actuator D005.
                                                                        Resistance: >1MΩ










               Are check results normal?
               Yes >   Replace central lock controller.
               No >    Repair the line between connector pins 2 of central lock controller B035 and right front door
                      lock actuator D005.
