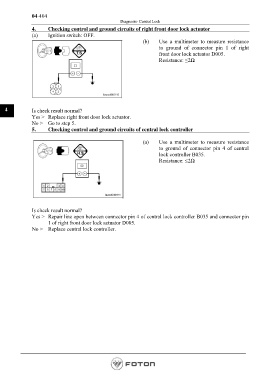

P. 548

04-404
                                                       Diagnosis- Central Lock
               4.     Checking control and ground circuits of right front door lock actuator
               (a)    Ignition switch: OFF.
                                                                (b)     Use a multimeter to measure resistance
                                                                        to ground of connector pin 1 of right
                                                                        front door lock actuator D005.
                                                                        Resistance: ≤2Ω










   4           Is check result normal?
               Yes >   Replace right front door lock actuator.
               No >    Go to step 5.
               5.     Checking control and ground circuits of central lock controller

                                                                (a)     Use a multimeter to measure resistance
                                                                        to ground of connector pin 4 of central
                                                                        lock controller B035.
                                                                        Resistance: ≤2Ω










               Is check result normal?
               Yes >   Repair line open between connector pin 4 of central lock controller B035 and connector pin
                      1 of right front door lock actuator D005.
               No >    Replace central lock controller.
