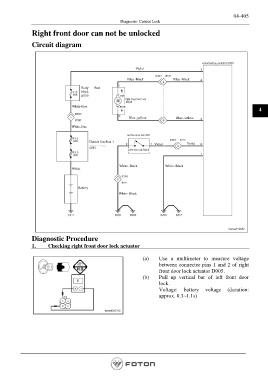

P. 549
04-405
Diagnosis- Central Lock
Right front door can not be unlocked
Circuit diagram
central locking controller B0035
Violet
Blue -Black Blue -Black
Body fuse
block
B050 Lock
Right Front Door Lock
White-blue Open
4
Blue -yellow Blue -yellow
White-blue
Left front door lock E005
Chassis fuse box 1 Violet
Violet
Left Door Lock Switch
White- Black White- Black
White
Battery
White- Black
Diagnostic Procedure
1. Checking right front door lock actuator
(a) Use a multimeter to measure voltage
between connector pins 1 and 2 of right
front door lock actuator D005.
(b) Pull up vertical bar of left front door
lock.
Voltage: battery voltage (duration:
approx. 0.3~1.1s)
