Page 907 - Workshop Manual - Aumark (BJ1051)

31A-61

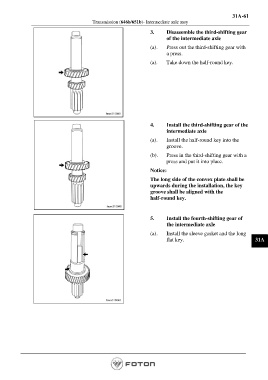

Transmission (646b/651b)- Intermediate axle assy

3. Disassemble the third-shifting gear
of the intermediate axle
(a). Press out the third-shifting gear with
a press.
(a). Take down the half-round key.

4. Install the third-shifting gear of the
intermediate axle
(a). Install the half-round key into the
groove.
(b). Press in the third-shifting gear with a
press and put it into place.
Notice:

The long side of the convex plate shall be
upwards during the installation, the key
groove shall be aligned with the
half-round key.

5. Install the fourth-shifting gear of
the intermediate axle

(a). Install the sleeve gasket and the long
flat key. 31A

Page 907
