31A-65
Transmission (646b/651b)- upper cover assy

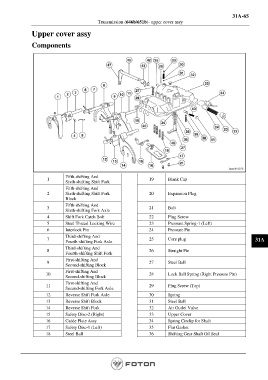

Upper cover assy

Components

Fifth-shifting And
1 19 Blank Cap
Sixth-shifting Shift Fork
Fifth-shifting And
2 Sixth-shifting Shift Fork 20 Expansion Plug
Block
Fifth-shifting And
3 21 Bolt
Sixth-shifting Fork Axle
4 Shift Fork Catch Bolt 22 Plug Screw
5 Steel Thread Locking Wire 23 Pressure Spring-1 (Left)
6 Interlock Pin 24 Pressure Pin
Third-shifting And
7 25 Core plug 31A
Fourth-shifting Fork Axle
Third-shifting And
8 26 Straight Pin
Fourth-shifting Shift Fork
First-shifting And
9 27 Steel Ball
Second-shifting Block
First-shifting And
10 28 Lock Ball Spring (Right Pressure Pin)
Second-shifting Block
First-shifting And
11 29 Plug Screw (Top)
Second-shifting Fork Axle
12 Reverse Shift Fork Axle 30 Spring
13 Reverse Shift Block 31 Steel Ball
14 Reverse Shift Fork 32 Air Outlet Valve
15 Safety Disc-2 (Right) 33 Upper Cover
16 Guide Plate Assy 34 Spring Circlip for Shaft
17 Safety Disc-1 (Left) 35 Flat Gasket
18 Steel Ball 36 Shifting Gear Shaft Oil Seal
