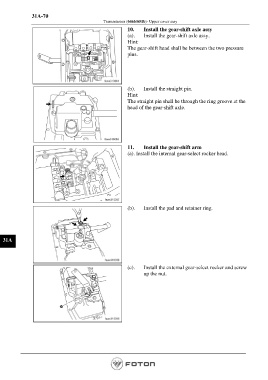

31A-70
Transmission (646b/651b)- Upper cover assy

10. Install the gear-shift axle assy
(a). Install the gear-shift axle assy.
Hint:
The gear-shift head shall be between the two pressure
pins.

(b). Install the straight pin.
Hint:
The straight pin shall be through the ring groove at the
head of the gear-shift axle.

11. Install the gear-shift arm
(a). Install the internal gear-select rocker head.

(b). Install the pad and retainer ring.

31A

(c). Install the external gear-select rocker and screw
up the nut.
