31A-71

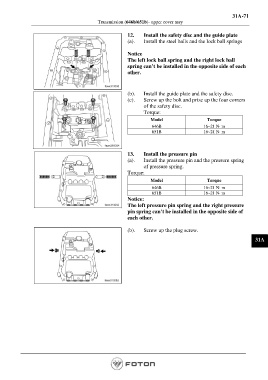

Transmission (646b/651b)- upper cover assy
12. Install the safety disc and the guide plate
(a). Install the steel balls and the lock ball springs
Notice
The left lock ball spring and the right lock ball
spring can’t be installed in the opposite side of each
other.
(b). Install the guide plate and the safety disc.
(c). Screw up the bolt and prize up the four corners
of the safety disc.
Torque:
Model Torque
646B 16~21 N· m
651B 16~21 N· m
13. Install the pressure pin
(a). Install the pressure pin and the pressure spring
of pressure spring.
Torque:
Model Torque
646B 16~21 N· m
651B 16~21 N· m
Notice:
The left pressure pin spring and the right pressure
pin spring can’t be installed in the opposite side of
each other.
(b). Screw up the plug screw.
31A
