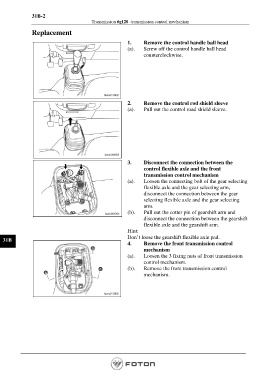

Transmission 6g120 -transmission control mechanism

Replacement

1. Remove the control handle ball head
(a). Screw off the control handle ball head
counterclockwise.

2. Remove the control rod shield sleeve
(a). Pull out the control road shield sleeve.

3. Disconnect the connection between the
control flexible axle and the front
transmission control mechanism
(a). Loosen the connecting bolt of the gear selecting
flexible axle and the gear selecting arm,
disconnect the connection between the gear
selecting flexible axle and the gear selecting
arm.
(b). Pull out the cotter pin of gearshift arm and
disconnect the connection between the gearshift
flexible axle and the gearshift arm.
Hint:
Don’t loose the gearshift flexible axle pad.
31B
4. Remove the front transmission control
mechanism
(a). Loosen the 3 fixing nuts of front transmission
control mechanism.
(b). Remove the front transmission control
mechanism.
