31B-1
Transmission 6g120 -transmission control mechanism

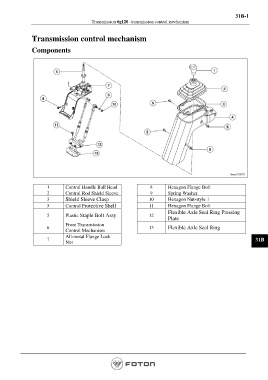

Transmission control mechanism
Components
1 Control Handle Ball Head 8 Hexagon Flange Bolt
2 Control Rod Shield Sleeve 9 Spring Washer
3 Shield Sleeve Clasp 10 Hexagon Nut-style 1
5 Control Protective Shell 11 Hexagon Flange Bolt
Flexible Axle Seal Ring Pressing
5 Plastic Staple Bolt Assy 12
Plate
Front Transmission
6 13 Flexible Axle Seal Ring
Control Mechanism
All-metal Flange Lock
7 31B
Nut
