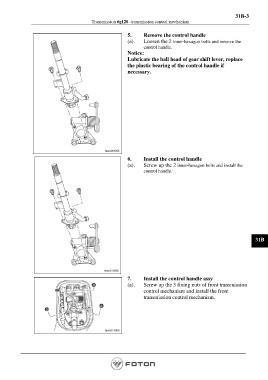

31B-3
Transmission 6g120 -transmission control mechanism

5. Remove the control handle
(a). Loosen the 2 inner-hexagon bolts and remove the
control handle.
Notice:
Lubricate the ball head of gear shift lever, replace
the plastic bearing of the control handle if
necessary.

6. Install the control handle
(a). Screw up the 2 inner-hexagon bolts and install the
control handle.

31B

7. Install the control handle assy
(a). Screw up the 3 fixing nuts of front transmission
control mechanism and install the front
transmission control mechanism.
