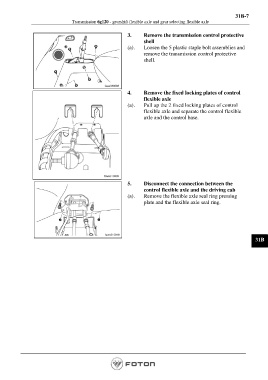

31B-7
Transmission 6g120 - gearshift flexible axle and gear selecting flexible axle
3. Remove the transmission control protective
shell
(a). Loosen the 5 plastic staple bolt assemblies and
remove the transmission control protective
shell.
4. Remove the fixed locking plates of control
flexible axle
(a). Pull up the 2 fixed locking plates of control
flexible axle and separate the control flexible
axle and the control base.
5. Disconnect the connection between the
control flexible axle and the driving cab
(a). Remove the flexible axle seal ring pressing
plate and the flexible axle seal ring.
31B
