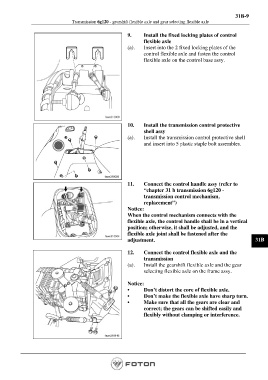

31B-9
Transmission 6g120 - gearshift flexible axle and gear selecting flexible axle

9. Install the fixed locking plates of control
flexible axle
(a). Insert into the 2 fixed locking plates of the
control flexible axle and fasten the control
flexible axle on the control base assy.

10. Install the transmission control protective
shell assy
(a). Install the transmission control protective shell
and insert into 5 plastic staple bolt assembles.

11. Connect the control handle assy (refer to
“chapter 31 b transmission 6g120 -
transmission control mechanism,
replacement”)
Notice:
When the control mechanism connects with the
flexible axle, the control handle shall be in a vertical
position; otherwise, it shall be adjusted, and the
flexible axle joint shall be fastened after the
adjustment. 31B

12. Connect the control flexible axle and the
transmission
(a). Install the gearshift flexible axle and the gear
selecting flexible axle on the frame assy.

Notice:
• Don’t distort the core of flexible axle.
• Don’t make the flexible axle have sharp turn.
• Make sure that all the gears are clear and
correct; the gears can be shifted easily and
flexibly without clamping or interference.
