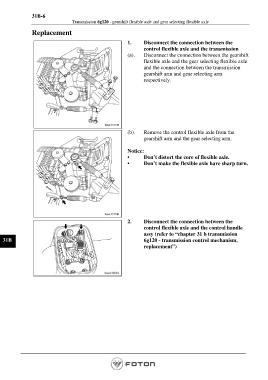

31B-6
Transmission 6g120 - gearshift flexible axle and gear selecting flexible axle

Replacement

1. Disconnect the connection between the
control flexible axle and the transmission
(a). Disconnect the connection between the gearshift
flexible axle and the gear selecting flexible axle
and the connection between the transmission
gearshift arm and gear selecting arm
respectively.

(b). Remove the control flexible axle from the
gearshift arm and the gear selecting arm.

Notice:
• Don’t distort the core of flexible axle.
• Don’t make the flexible axle have sharp turn.

2. Disconnect the connection between the
control flexible axle and the control handle
assy (refer to “chapter 31 b transmission
31B 6g120 - transmission control mechanism,
replacement”)
