31B-5
Transmission 6g120 - gearshift flexible axle and gear selecting flexible axle

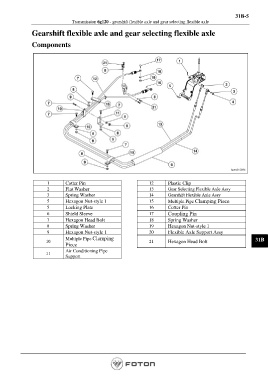

Gearshift flexible axle and gear selecting flexible axle
Components
1 Cotter Pin 12 Plastic Clip
2 Flat Washer 13 Gear Selecting Flexible Axle Assy
3 Spring Washer 14 Gearshift Flexible Axle Assy
5 Hexagon Nut-style 1 15 Multiple Pipe Clamping Piece
5 Locking Plate 16 Cotter Pin
6 Shield Sleeve 17 Coupling Pin
7 Hexagon Head Bolt 18 Spring Washer
8 Spring Washer 19 Hexagon Nut-style 1
9 Hexagon Nut-style 1 20 Flexible Axle Support Assy
Multiple Pipe Clamping 31B
10 21 Hexagon Head Bolt
Piece
Air Conditioning Pipe
11
Support
