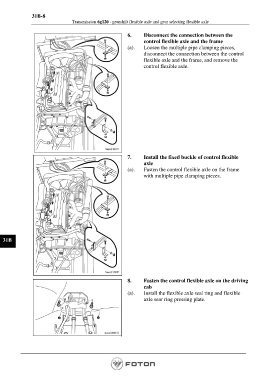

31B-8
Transmission 6g120 - gearshift flexible axle and gear selecting flexible axle

6. Disconnect the connection between the
control flexible axle and the frame
(a). Loosen the multiple pipe clamping pieces,
disconnect the connection between the control
flexible axle and the frame, and remove the
control flexible axle.

7. Install the fixed buckle of control flexible
axle
(a). Fasten the control flexible axle on the frame
with multiple pipe clamping pieces.

31B

8. Fasten the control flexible axle on the driving
cab
(a). Install the flexible axle seal ring and flexible
axle sear ring pressing plate.
