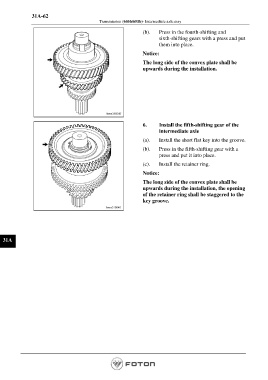

31A-62
Transmission (646b/651b)- Intermediate axle assy

(b). Press in the fourth-shifting and
sixth-shifting gears with a press and put
them into place.
Notice:
The long side of the convex plate shall be
upwards during the installation.

6. Install the fifth-shifting gear of the
intermediate axle
(a). Install the short flat key into the groove.
(b). Press in the fifth-shifting gear with a
press and put it into place.

(c). Install the retainer ring.
Notice:

The long side of the convex plate shall be
upwards during the installation, the opening
of the retainer ring shall be staggered to the
key groove.

31A
