Page 905 - Workshop Manual - Aumark (BJ1051)
P. 905
31A-59

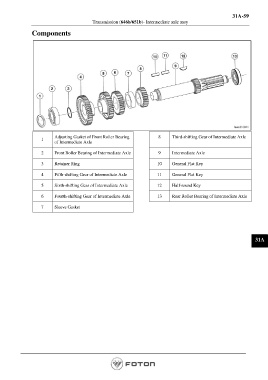

Transmission (646b/651b)- Intermediate axle assy
Components
Adjusting Gasket of Front Roller Bearing 8 Third-shifting Gear of Intermediate Axle
1
of Intermediate Axle
2 Front Roller Bearing of Intermediate Axle 9 Intermediate Axle
3 Retainer Ring 10 General Flat Key
4 Fifth-shifting Gear of Intermediate Axle 11 General Flat Key
5 Sixth-shifting Gear of Intermediate Axle 12 Half-round Key
6 Fourth-shifting Gear of Intermediate Axle 13 Rear Roller Bearing of Intermediate Axle
7 Sleeve Gasket
31A
Page 905
