31A-16
Transmission (646b/651b)-transmission assembly

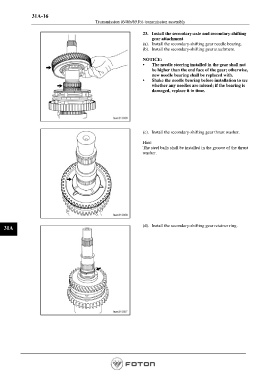

23. Install the secondary-axle and secondary-shifting
gear attachment
(a). Install the secondary-shifting gear needle bearing.
(b). Install the secondary-shifting gear attachment.

NOTICE:
• The needle steering installed in the gear shall not
be higher than the end face of the gear; otherwise,
new needle bearing shall be replaced with.
• Shake the needle bearing before installation to see
whether any needles are missed; if the bearing is
damaged, replace it in time.

(c). Install the secondary-shifting gear thrust washer.

Hint:
The steel balls shall be installed in the groove of the thrust
washer.

31A (d). Install the secondary-shifting gear retainer ring.
