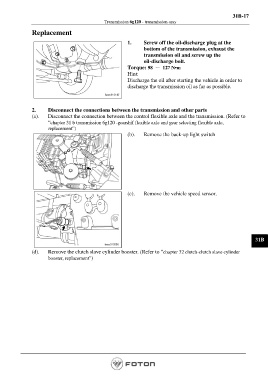

Page 937 - Workshop Manual - Aumark (BJ1051)

31B-17
Transmission 6g120 - transmission assy

Replacement

1. Screw off the oil-discharge plug at the
bottom of the transmission, exhaust the
transmission oil and screw up the
oil-discharge bolt.
Torque: 98 ～ 127 N•m
Hint:
Discharge the oil after starting the vehicle in order to
discharge the transmission oil as far as possible.

2. Disconnect the connections between the transmission and other parts
(a). Disconnect the connection between the control flexible axle and the transmission. (Refer to
“chapter 31 b transmission 6g120 -gearshif flexible axle and gear selecting flexible axle,
replacement”)
(b). Remove the back-up light switch

(c). Remove the vehicle speed sensor.

31B

(d). Remove the clutch slave cylinder booster. (Refer to “chapter 32 clutch-clutch slave cylinder
booster, replacement”)
