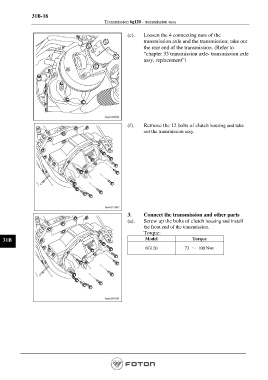

31B-18
Transmission 6g120 - transmission assy
(e). Loosen the 4 connecting nuts of the
transmission axle and the transmission; take out
the rear end of the transmission. (Refer to
“chapter 33 transmission axle- transmission axle
assy, replacement”)
(f). Remove the 12 bolts of clutch housing and take
out the transmission assy.
3. Connect the transmission and other parts
(a). Screw up the bolts of clutch housing and install
the front end of the transmission.
Torque:
31B Model Torque
6G120 73 ～ 100 N•m
