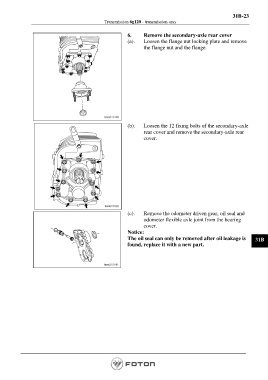

Page 943 - Workshop Manual - Aumark (BJ1051)
P. 943
31B-23
Transmission 6g120 - transmission assy
6. Remove the secondary-axle rear cover
(a). Loosen the flange nut locking plate and remove
the flange nut and the flange.
(b). Loosen the 12 fixing bolts of the secondary-axle
rear cover and remove the secondary-axle rear
cover.
(c). Remove the odometer driven gear, oil seal and
odometer flexible axle joint from the bearing
cover.
Notice:
The oil seal can only be removed after oil leakage is 31B
found, replace it with a new part.
Page 943
