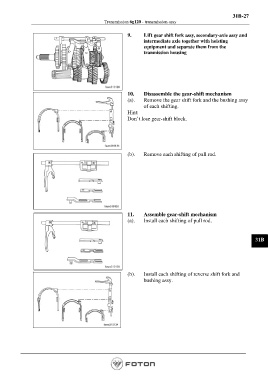

P. 947
31B-27
Transmission 6g120 - transmission assy
9. Lift gear shift fork assy, secondary-axle assy and
intermediate axle together with hoisting
equipment and separate them from the
tranmission housing
10. Disassemble the gear-shift mechanism
(a). Remove the gear shift fork and the bushing assy
of each shifting.
Hint:
Don’t lose gear-shift block.
(b). Remove each shifting of pull rod.
11. Assemble gear-shift mechanism
(a). Install each shifting of pull rod.
31B
(b). Install each shifting of reverse shift fork and
bushing assy.
