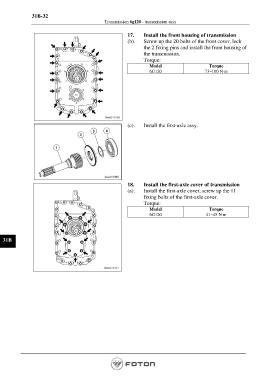

Page 952 - Workshop Manual - Aumark (BJ1051)
P. 952
31B-32
Transmission 6g120 - transmission assy
17. Install the front housing of transmission
(b). Screw up the 20 bolts of the front cover, lock
the 2 fixing pins and install the front housing of
the transmission.
Torque:
Model Torque
6G120 73~100 N·m
(c). Install the first-axle assy.
18. Install the first-axle cover of transmission
(a). Install the first-axle cover, screw up the 11
fixing bolts of the first-axle cover.
Torque:
Model Torque
6G120 41~45 N·m
31B
Page 952
