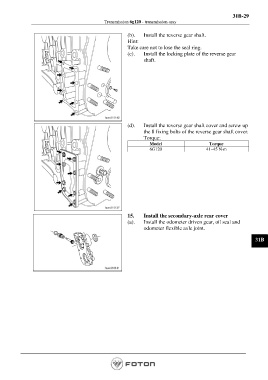

31B-29
Transmission 6g120 - transmission assy

(b). Install the reverse gear shaft.
Hint:
Take care not to lose the seal ring.
(c). Install the locking plate of the reverse gear
shaft.

(d). Install the reverse gear shaft cover and screw up
the 8 fixing bolts of the reverse gear shaft cover.
Torque:
Model Torque
6G120 41~45 N·m

15. Install the secondary-axle rear cover
(a). Install the odometer driven gear, oil seal and
odometer flexible axle joint.

31B
