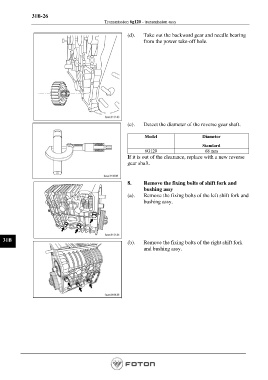

P. 946
31B-26
Transmission 6g120 - transmission assy
(d). Take out the backward gear and needle bearing
from the power take-off hole.
(e). Detect the diameter of the reverse gear shaft.
Model Diameter
Standard
6G120 68 mm
If it is out of the clearance, replace with a new reverse
gear shaft.
8. Remove the fixing bolts of shift fork and
bushing assy
(a). Remove the fixing bolts of the left shift fork and
bushing assy.
31B (b). Remove the fixing bolts of the right shift fork
and bushing assy.
