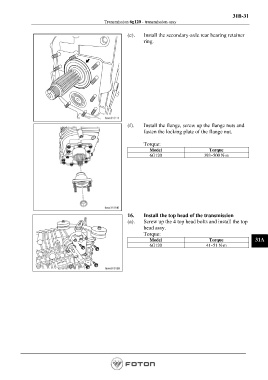

Page 951 - Workshop Manual - Aumark (BJ1051)
P. 951
31B-31
Transmission 6g120 - transmission assy
(e). Install the secondary-axle rear bearing retainer
ring.
(f). Install the flange, screw up the flange nuts and
fasten the locking plate of the flange nut.
Torque:
Model Torque
6G120 393~500 N·m
16. Install the top head of the transmission
(a). Screw up the 4 top head bolts and install the top
head assy.
Torque:
Model Torque 31A
6G120 41~51 N·m
Page 951
