P. 948

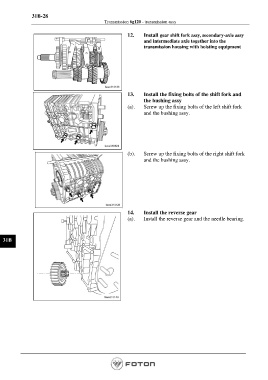

31B-28
Transmission 6g120 - transmission assy
12. Install gear shift fork assy, secondary-axle assy
and intermediate axle together into the
transmission housing with hoisting equipment
13. Install the fixing bolts of the shift fork and
the bushing assy
(a). Screw up the fixing bolts of the left shift fork
and the bushing assy.
(b). Screw up the fixing bolts of the right shift fork
and the bushing assy.
14. Install the reverse gear
(a). Install the reverse gear and the needle bearing.
31B
