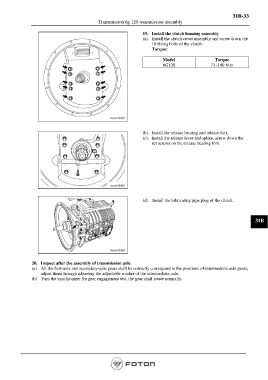

31B-33
Transmission 6g 120-transmission assembly

19. Install the clutch housing assembly
(a). Install the clutch cover assembly and screw down the
10 fixing bolts of the clutch.
Torque:

Model Torque
6G120 73~100 N·m

(b). Install the release bearing and release fork.
(c). Install the release lever and spline, screw down the
set screws on the release bearing fork.

(d). Install the lubricating pipe plug of the clutch.

31B

20. Inspect after the assembly of transmission axle
(a). All the first-axle and secondary-axle gears shall be correctly correspond to the positions of intermediate axle gears;
adjust them through adjusting the adjustable washer of the intermediate axle.
(b). Turn the synchronizer for gear engagement test, the gear shall rotate normally.
