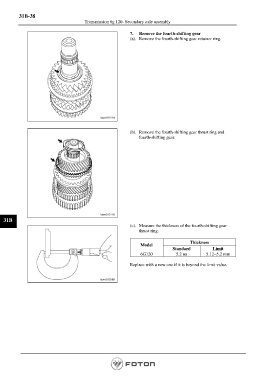

P. 958
31B-38
Transmission 6g 120- Secondary axle assembly
7. Remove the fourth-shifting gear
(a). Remove the fourth-shifting gear retainer ring.
(b). Remove the fourth-shifting gear thrust ring and
fourth-shifting gear.
31B
(c). Measure the thickness of the fourth-shifting gear
thrust ring.
Thickness
Model
Standard Limit
6G120 5.2 nn 5.12~5.2 mm
Replace with a new one if it is beyond the limit value.
