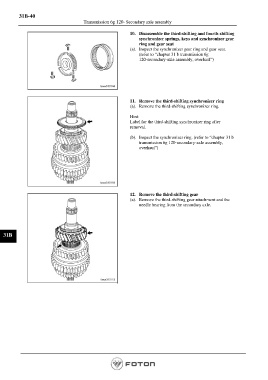

31B-40
Transmission 6g 120- Secondary axle assembly

10. Disassemble the third-shifting and fourth-shifting
synchronizer springs, keys and synchronizer gear
ring and gear seat
(a). Inspect the synchronizer gear ring and gear seat.
(refer to “chapter 31 b transmission 6g
120-secondary-axle assembly, overhaul”)

11. Remove the third-shifting synchronizer ring
(a). Remove the third-shifting synchronizer ring.

Hint:
Label for the third-shifting synchronizer ring after
removal.

(b). Inspect the synchronizer ring. (refer to “chapter 31 b
transmission 6g 120-secondary-axle assembly,
overhaul”)

12. Remove the third-shifting gear
(a). Remove the third-shifting gear attachment and the
needle bearing from the secondary axle.

31B
