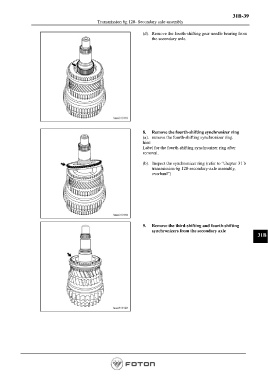

Page 959 - Workshop Manual - Aumark (BJ1051)
P. 959
31B-39
Transmission 6g 120- Secondary axle assembly
(d). Remove the fourth-shifting gear needle bearing from
the secondary axle.
8. Remove the fourth-shifting synchronizer ring
(a). remove the fourth-shifting synchronizer ring.
hint:
Label for the fourth-shifting synchronizer ring after
removal.
(b). Inspect the synchronizer ring (refer to “chapter 31 b
transmission 6g 120-secondary-axle assembly,
overhaul”)
9. Remove the third-shifting and fourth-shifting
synchronizers from the secondary axle
31B
Page 959
