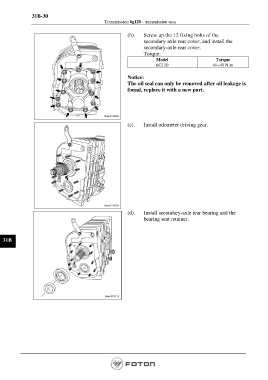

31B-30
Transmission 6g120 - transmission assy

(b). Screw up the 12 fixing bolts of the
secondary-axle rear cover, and install the
secondary-axle rear cover.
Torque:
Model Torque
6G120 41~45 N·m

Notice:
The oil seal can only be removed after oil leakage is
found, replace it with a new part.

(c). Install odometer driving gear.

(d). Install secondary-axle rear bearing and the
bearing seat retainer.

31B
