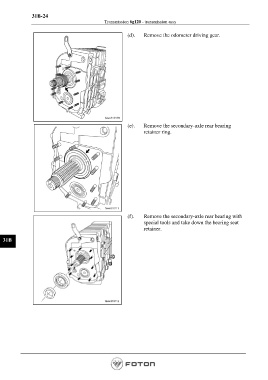

Page 944 - Workshop Manual - Aumark (BJ1051)
P. 944

31B-24
                                               Transmission 6g120 - transmission assy


                                                          (d).    Remove the odometer driving gear.























                                                          (e).    Remove the secondary-axle rear bearing
                                                                 retainer ring.





















                                                          (f).     Remove the secondary-axle rear bearing with
                                                                 special tools and take down the bearing seat
                                                                 retainer.


  31B
































                                                                                                         Page 944
