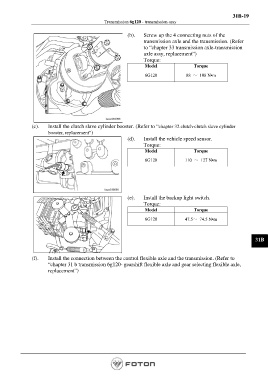

Page 939 - Workshop Manual - Aumark (BJ1051)

31B-19
Transmission 6g120 - transmission assy

(b). Screw up the 4 connecting nuts of the
transmission axle and the transmission. (Refer
to “chapter 33 transmission axle-transmission
axle assy, replacement”)
Torque:
Model Torque
6G120 88 ～ 108 N•m

(c). Install the clutch slave cylinder booster. (Refer to “chapter 32 clutch-clutch slave cylinder
booster, replacement”)
(d). Install the vehicle speed sensor.
Torque:
Model Torque

6G120 110 ～ 127 N•m

(e). Install the backup light switch.
Torque:
Model Torque

6G120 47.5～ 74.5 N•m

31B

(f). Install the connection between the control flexible axle and the transmission. (Refer to
“chapter 31 b transmission 6g120- gearshift flexible axle and gear selecting flexible axle,
replacement”)

Page 939
