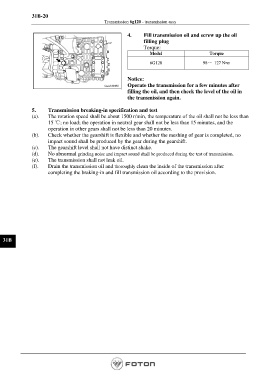

Page 940 - Workshop Manual - Aumark (BJ1051)

31B-20
Transmission 6g120 - transmission assy

4. Fill transmission oil and screw up the oil
filling plug
Torque:
Model Torque

6G120 98～ 127 N•m

Notice:
Operate the transmission for a few minutes after
filling the oil, and then check the level of the oil in
the transmission again.

5. Transmission breaking-in specification and test
(a). The rotation speed shall be about 1500 r/min, the temperature of the oil shall not be less than
15 ; no load; the operation in neutral gear shall not be less than 15 minutes, and the ℃
operation in other gears shall not be less than 20 minutes.
(b). Check whether the gearshift is flexible and whether the meshing of gear is completed, no
impact sound shall be produced by the gear during the gearshift.
(c). The gearshift level shall not have distinct shake.
(d). No abnormal grinding noise and impact sound shall be produced during the test of transmission.
(e). The transmission shall not leak oil.
(f). Drain the transmission oil and thoroughly clean the inside of the transmission after
completing the braking-in and fill transmission oil according to the provision.

31B
