32-5

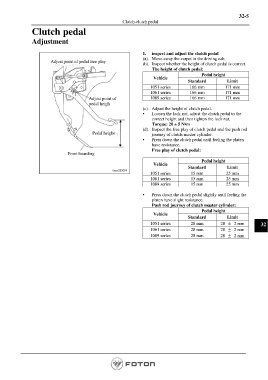

Clutch-clutch pedal
Clutch pedal

Adjustment

1. inspect and adjust the clutch pedal
(a). Move away the carpet in the driving cab.
Adjust point of pedal free play
(b). Inspect whether the height of clutch pedal is correct.
The height of clutch pedal:
Pedal height
Vehicle
Standard Limit
1051 series 166 mm 171 mm
1061 series 166 mm 171 mm
Adjust point of 1089 series 166 mm 171 mm
pedal heigh
(c). Adjust the height of clutch pedal.
• Loosen the lock nut, adjust the clutch pedal to the
correct height and then tighten the lock nut.
Torque: 20 ± 5 N•m
(d). Inspect the free play of clutch pedal and the push rod
Pedal height journey of clutch master cylinder.
• Press down the clutch pedal until feeling the platen
have resistance.
Free play of clutch pedal:
Front boarding
Pedal height
Vehicle
Standard Limit
1051 series 15 mm 25 mm
1061 series 15 mm 25 mm
1089 series 15 mm 25 mm

• Press down the clutch pedal slightly until feeling the
platen have slight resistance.
Push rod journey of clutch master cylinder:
Pedal height
Vehicle
Standard Limit
1051 series 28 mm 28 ± 2 mm 32
1061 series 28 mm 28 ± 2 mm
1089 series 28 mm 28 ± 2 mm
