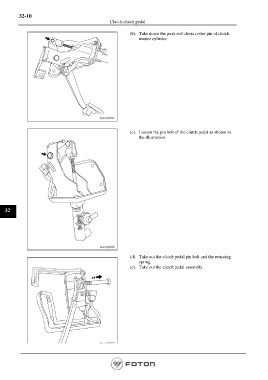

Page 990 - Workshop Manual - Aumark (BJ1051)
P. 990
32-10
Clutch-clutch pedal
(b). Take down the push rod clevis cotter pin of clutch
master cylinder.
(c). Loosen the pin bolt of the clutch pedal as shown in
the illustration.
32
(d). Take out the clutch pedal pin bolt and the retracing
spring.
(e). Take out the clutch pedal assembly.
Page 990
