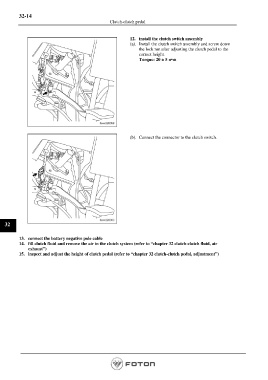

P. 994
32-14
Clutch-clutch pedal
12. install the clutch switch assembly
(a). Install the clutch switch assembly and screw down
the lock nut after adjusting the clutch pedal to the
correct height.
Torque: 20 ± 5 n•m
(b). Connect the connector to the clutch switch.
32
13. connect the battery negative pole cable
14. fill clutch fluid and remove the air in the clutch system (refer to “chapter 32 clutch-clutch fluid, air
exhaust”)
15. inspect and adjust the height of clutch pedal (refer to “chapter 32 clutch-clutch pedal, adjustment”)
