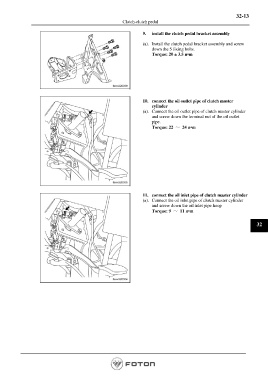

32-13
Clutch-clutch pedal

9. install the clutch pedal bracket assembly

(a). Install the clutch pedal bracket assembly and screw
down the 5 fixing bolts.
Torque: 20 ± 3.5 n•m

10. connect the oil outlet pipe of clutch master
cylinder
(a). Connect the oil outlet pipe of clutch master cylinder
and screw down the terminal nut of the oil outlet
pipe.
Torque: 22 ～ 24 n•m

11. connect the oil inlet pipe of clutch master cylinder
(a). Connect the oil inlet pipe of clutch master cylinder
and screw down the oil inlet pipe hoop
Torque: 9 ～ 11 n•m

32
