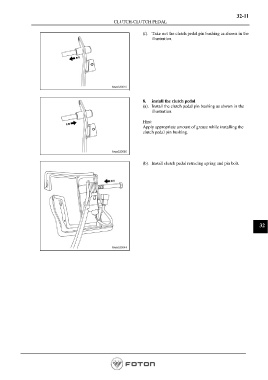

32-11
CLUTCH-CLUTCH PEDAL
(f). Take out the clutch pedal pin bushing as shown in the
illustration.
8. install the clutch pedal
(a). Install the clutch pedal pin bushing as shown in the
illustration.
Hint:
Apply appropriate amount of grease while installing the
clutch pedal pin bushing.
(b). Install clutch pedal retracing spring and pin bolt.
