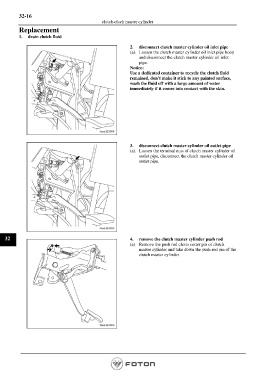

32-16
clutch-cluch master cylinder
Replacement
1. drain clutch fluid

2. disconnect clutch master cylinder oil inlet pipe
(a). Loosen the clutch master cylinder oil inlet pipe hoop
and disconnect the clutch master cylinder oil inlet
pipe.
Notice:
Use a dedicated container to recycle the clutch fluid
remained, don’t make it stick to any painted surface,
wash the fluid off with a large amount of water
immediately if it comes into contact with the skin.

3. disconnect clutch master cylinder oil outlet pipe
(a). Loosen the terminal nuts of clutch master cylinder oil
outlet pipe, disconnect the clutch master cylinder oil
outlet pipe.

32 4. remove the clutch master cylinder push rod
(a). Remove the push rod clevis cotter pin of clutch
master cylinder and take down the push rod pin of the
clutch master cylinder.
