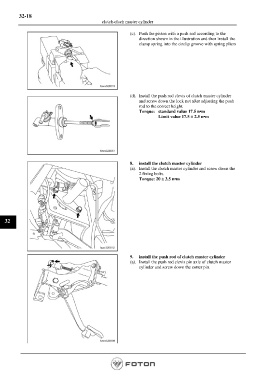

32-18
clutch-cluch master cylinder

(c). Push the piston with a push rod according to the
direction shown in the illustration and then install the
clamp spring into the circlip groove with spring pliers

(d). Install the push rod clevis of clutch master cylinder
and screw down the lock nut after adjusting the push
rod to the correct height.
Torque: standard value 17.5 n•m
Limit value 17.5 ± 2.5 n•m

8. install the clutch master cylinder
(a). Install the clutch master cylinder and screw down the
2 fixing bolts.
Torque: 20 ± 3.5 n•m

32

9. install the push rod of clutch master cylinder
(a). Install the push rod clevis pin axle of clutch master
cylinder and screw down the cotter pin.
