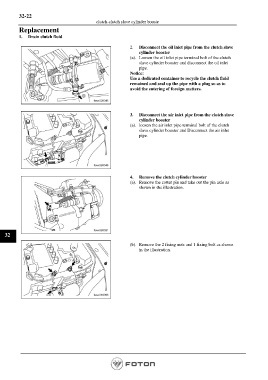

32-22
clutch-clutch slave cylinder booste
Replacement
1. Drain clutch fluid

2. Disconnect the oil inlet pipe from the clutch slave
cylinder booster
(a). Loosen the oil inlet pipe terminal bolt of the clutch
slave cylinder booster and disconnect the oil inlet
pipe.
Notice:
Use a dedicated container to recycle the clutch fluid
remained and seal up the pipe with a plug so as to
avoid the entering of foreign matters.

3. Disconnect the air inlet pipe from the clutch slave
cylinder booster
(a). loosen the air inlet pipe terminal bolt of the clutch
slave cylinder booster and Disconnect the air inlet
pipe.

4. Remove the clutch cylinder booster
(a). Remove the cotter pin and take out the pin axle as
shown in the illustration.

32

(b). Remove the 2 fixing nuts and 1 fixing bolt as shown
in the illustration.
