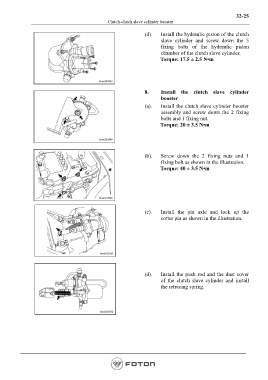

Page 1005 - Workshop Manual - Aumark (BJ1051)

32-25
Clutch-clutch slave cylinder booster

(d). Install the hydraulic piston of the clutch
slave cylinder and screw down the 5
fixing bolts of the hydraulic piston
chamber of the clutch slave cylinder.
Torque: 17.5 ± 2.5 N•m

8. Install the clutch slave cylinder
booster
(a). Install the clutch slave cylinder booster
assembly and screw down the 2 fixing
bolts and 1 fixing nut.
Torque: 20 ± 3.5 N•m

(b). Screw down the 2 fixing nuts and 1
fixing bolt as shown in the illustration.
Torque: 40 ± 3.5 N•m

(c). Install the pin axle and lock up the
cotter pin as shown in the illustration.

(d). Install the push rod and the dust cover
of the clutch slave cylinder and install
the retracing spring.
