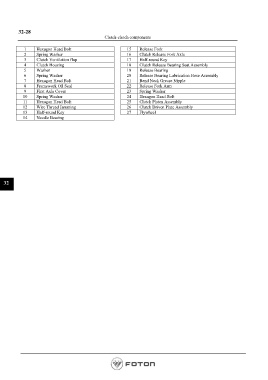

Clutch-clutch components
1 Hexagon Head Bolt 15 Release Fork
2 Spring Washer 16 Clutch Release Fork Axle
3 Clutch Ventilation flap 17 Half-round Key
4 Clutch Housing 18 Clutch Release Bearing Seat Assembly
5 Washer 19 Release Bearing
6 Spring Washer 20 Release Bearing Lubrication Hose Assembly
7 Hexagon Head Bolt 21 Bend Neck Grease Nipple
8 Framework Oil Seal 22 Release Fork Arm
9 First Axle Cover 23 Spring Washer
10 Spring Washer 24 Hexagon Head Bolt
11 Hexagon Head Bolt 25 Clutch Platen Assembly
12 Wire Thread Jamming 26 Clutch Driven Plate Assembly
13 Half-round Key 27 Flywheel
14 Needle Bearing
