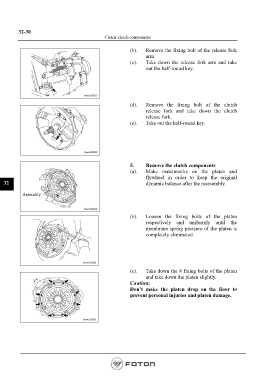

32-30
Clutch-clutch components

(b). Remove the fixing bolt of the release fork
arm.
(c). Take down the release fork arm and take
out the half-round key.

(d). Remove the fixing bolt of the clutch
release fork and take down the clutch
release fork.
(e). Take out the half-round key.

5. Remove the clutch components
(a). Make matchmarks on the platen and
flywheel in order to keep the original
32 dynamic balance after the reassembly.

Assembly

(b). Loosen the fixing bolts of the platen
respectively and uniformly until the
membrane spring pressure of the platen is
completely eliminated.

(c). Take down the 8 fixing bolts of the platen
and take down the platen slightly.
Caution:
Don’t make the platen drop on the floor to
prevent personal injuries and platen damage.
